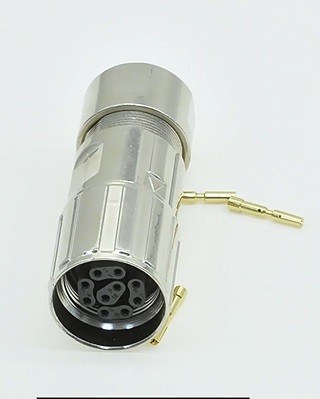

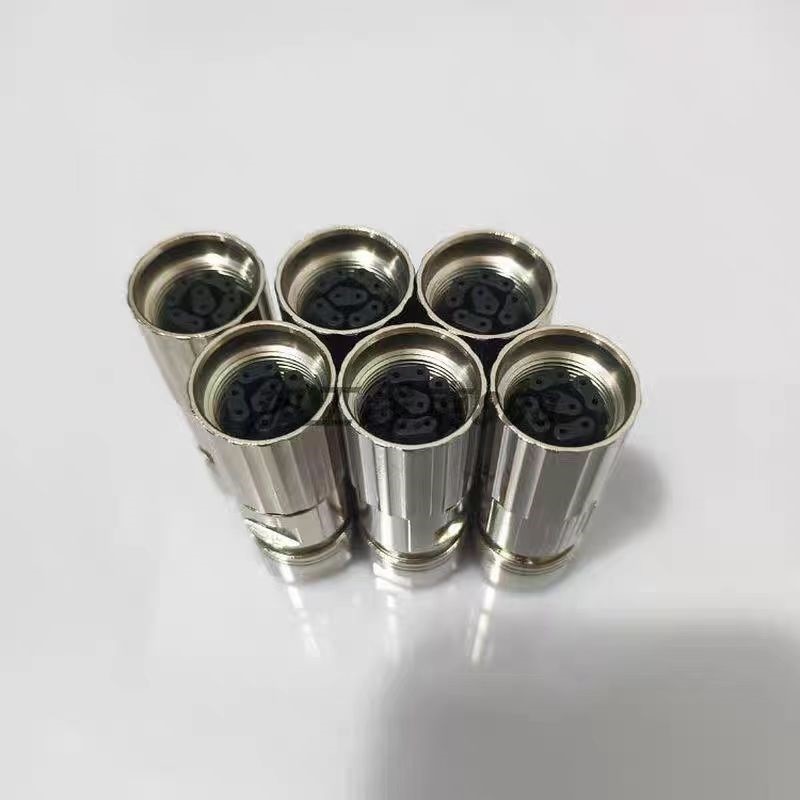

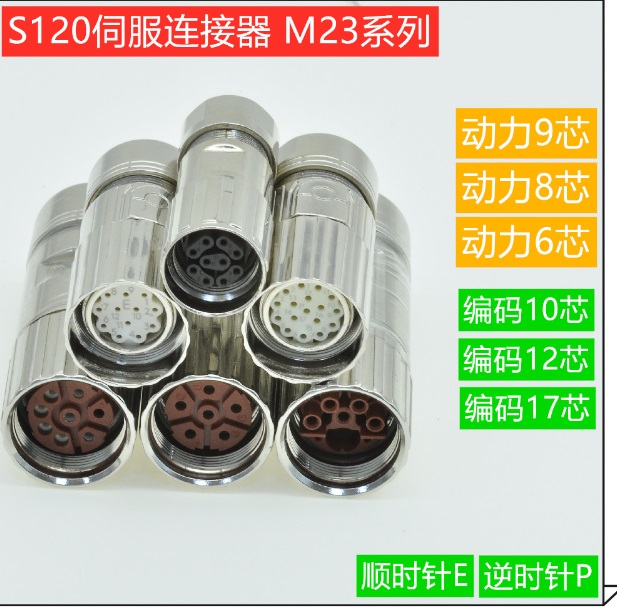

Product Description:
With two mounting types to choose from, panel mount and cable mount, you can easily find the right fit for your needs. These connectors also feature gold and silver contact plating, ensuring a secure and reliable connection.
The Servo Connector has a current rating of 16A-30A, making it suitable for a variety of applications. Whether you need to control the movement of a robotic arm or the positioning of a CNC machine, these connectors will provide the necessary power and stability.
Don't let poor connections slow down your production process. Upgrade to the Servo Motor Connectors and experience the benefits of a secure and reliable connection between your AC Servo Drive and High Torque DC Servo Motor and your AC Servo Motor Driver.
Features:
- Product Name: Servo Motor Connectors
- Material: Metal/Plastic
- Wire Gauge: 18-24 AWG Or More AWG6.0-6.5 Dia

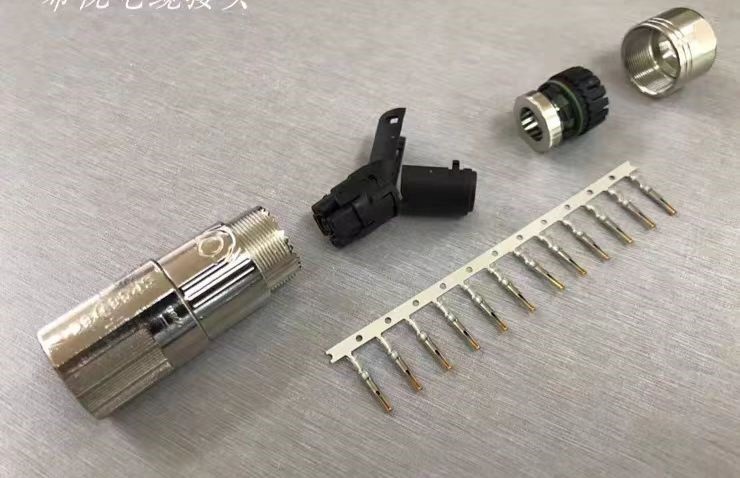

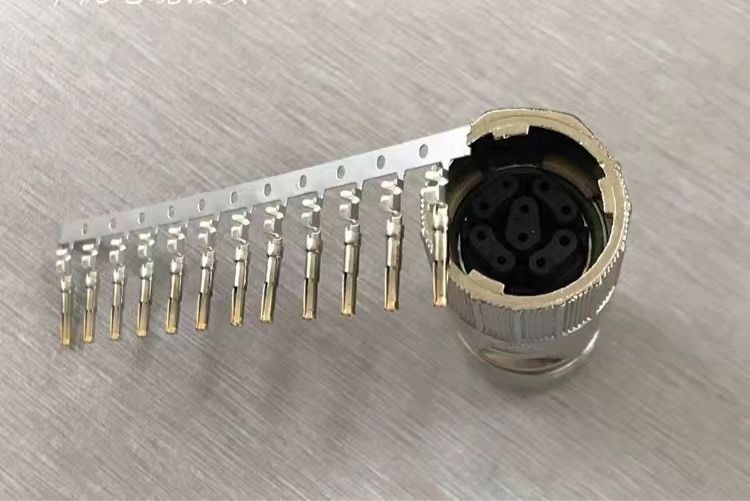

- Termination Type: Crimp/Solder
- Application: Industrial Automation
- Insulation Resistance: 500 M
These connectors are compatible with various servo motors including hydraulic brake motors, AC servo motor driver, and electro hydraulic servo. They are made of metal and plastic materials and can handle wire gauges from 18-24 AWG or more. The termination type can be crimp or solder. These connectors are ideal for industrial automation applications and have an insulation resistance of 500 M.
Technical Parameters:
| Technical Parameter | Value |
| Current Rating | 16A-30A |
| Number of Contacts | For SIMOTICS S-1FLC |
| Voltage Rating | 300V-1000V |
| Mounting Type | Panel Mount/Cable Mount |
| Material | Metal/Plastic |
| Contact Plating | Gold/Silver |
| Connector Type | Servo Motor |
| Application | Industrial Automation |
| Name | Servo Connector |
| Operating Temperature | -40℃ To +105℃ |
Keywords: Hydraulic Brake Motors, Electro Hydraulic Servo, Brushless Servo Motor
Applications:
The Servo Motor Connectors are made of high-quality metal and plastic materials, ensuring their durability and longevity. The connectors are available with gold or silver contact plating, ensuring a reliable and low resistance connection. The connectors are designed to be used with servo motors and are compatible with a wide range of servo motor types and models.
The Servo Motor Connectors are suitable for a variety of applications, including factory automation, robotics, CNC machinery, and other industrial applications. They are also ideal for use in AC servo drive systems, providing a reliable and robust connection between the servo motor and the drive. The connectors are easy to install and provide a secure and reliable connection, ensuring optimal performance of the servo motor and drive.
The Servo Motor Connectors are available in a minimum order quantity of 100 and are supplied in carton boxes. Delivery time is usually 1-3 working days, and payment can be made via T/T or PayPal. With a supply ability of 1000 pcs/day, the Servo Motor Connectors are readily available and can be used in a wide range of applications.
Customization:
Support and Services:
The Servo Motor Connectors product technical support and services include:
- Customizable wiring solutions
- Assistance with product selection and compatibility
- Troubleshooting and diagnosis of product issues
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The Servo Motor Connectors will be packaged in a sturdy cardboard box to ensure safe transportation. Each connector will be placed in a protective plastic bag and then secured in the box with foam inserts to prevent any damage during shipping.
Shipping:
Our standard shipping method for the Servo Motor Connectors is through reputable courier services such as FedEx, DHL, and UPS. Shipping costs will be calculated based on the weight and destination of the package. Customers can also choose to expedite the shipping process at an additional cost. We aim to process and ship all orders within 2 business days of receipt.
FAQ:
A: The brand name of the Servo Motor Connectors is NO MARK.
Q: What is the model number of the Servo Motor Connectors?
A: The model number of the Servo Motor Connectors is 6FX2003-0DU17.
Q: Where are the Servo Motor Connectors manufactured?
A: The Servo Motor Connectors are manufactured in China.
Q: What certifications do the Servo Motor Connectors have?
A: The Servo Motor Connectors have CE and ISO9001 certifications.
Q: What is the minimum order quantity for the Servo Motor Connectors?
A: The minimum order quantity for the Servo Motor Connectors is 100.
Q: What are the payment terms for the Servo Motor Connectors?
A: The payment terms for the Servo Motor Connectors are T/T and PayPal.
Q: What is the delivery time for the Servo Motor Connectors?
A: The delivery time for the Servo Motor Connectors is 1-3 working days.
Q: What is the packaging for the Servo Motor Connectors?
A: The Servo Motor Connectors are packaged in carton boxes.
Q: What is the supply ability for the Servo Motor Connectors?
A: The supply ability for the Servo Motor Connectors is 1000 pcs/day.
